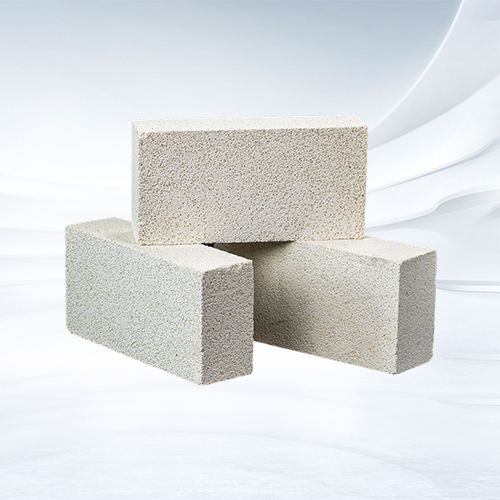

JM30 Insulation Brick
1.Excellent compression strength,
2.Excellent heat stability,
3.Low thermal conductivity,
4.Low heat storage.
Product Description
JM30 Insulation Brick Introduce
JM30 Insulation Bricks are made from high-purity refractory clays with gradually increasing aluminum oxide content and are carefully saturated with organic filling, which then burns out during the production process, resulting in a homogeneous, controlled porous structure. To achieve required tolerance, all six walls of each brick are mechanically processed.
Application of JM30 Insulation Brick
JM30 Insulation Brick should be used as the first layer of a refractory lining or as back insulating layer behind all other refractory layers in furnaces, bakes, fire channels, refining chambers and heat furnaces, regenerators, gas production plants and conduits, intended furnaces, stress-relieving furnaces, reactor chambers and similar high-temperature industrial devices.
JM30 Insulation Brick Technique Data
| Index | Model | Volume Density g/cm3 |
Reheating Linear Change 1400℃×12h % |
Cold Compression Strength Mpa |
Bending Strength At Normal Temperature Mpa |
Thermal Conductivity 350℃w/m.k |
Chemical Composition % |
||
| Al2O3 | SiO2 | Fe2O3 | |||||||
| JM-30 | A | 1.0 | -0.8 | 3.0 | 1.8 | 0.40 | 72 | 26 | 0.5 |
| B | 1.1 | -0.7 | 3.5 | 1.9 | 0.43 | 72 | 26 | 0.5 | |
| JM-32 | A | 1.1 | -0.8 | 3.6 | 1.9 | 0.43 | 75 | 23 | 0.4 |
| B | 1.2 | -0.7 | 3.8 | 2.0 | 0.46 | 75 | 23 | 0.4 | |
